Project Details

Location: Hardisty, AB

Time Frame: April 2020 – October 2020

Project Value: $19,500,000

Contract Type: Unit Rate

Services Rendered: Oil and Gas Construction

Project Summary

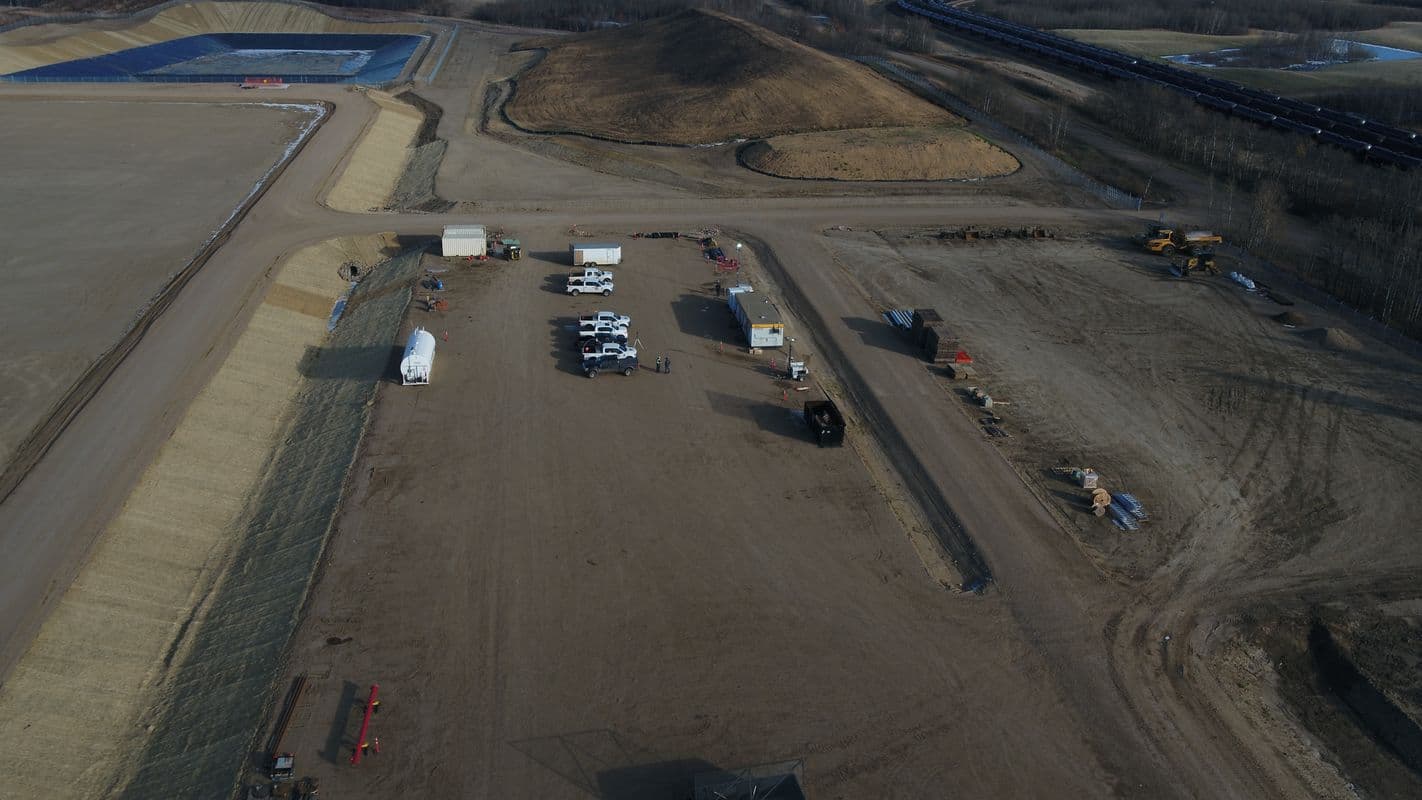

Civil site earthworks included supplying all equipment, labour, materials, and subcontractors to complete the earthworks site development and secondary containment of the midstream tank farm. Common excavation to fill, grading, construction of site access roads, approaches, culvert and ditching for site drainage, pond construction, berm construction, and four various-sized tank base foundations.

Project Scope

  • Excavated and moved 260,000 m3 of soil for various purposes like foundation preparation, road grading, creating berms, and stockpiling

  • Conducted precise excavation and final leveling of the site

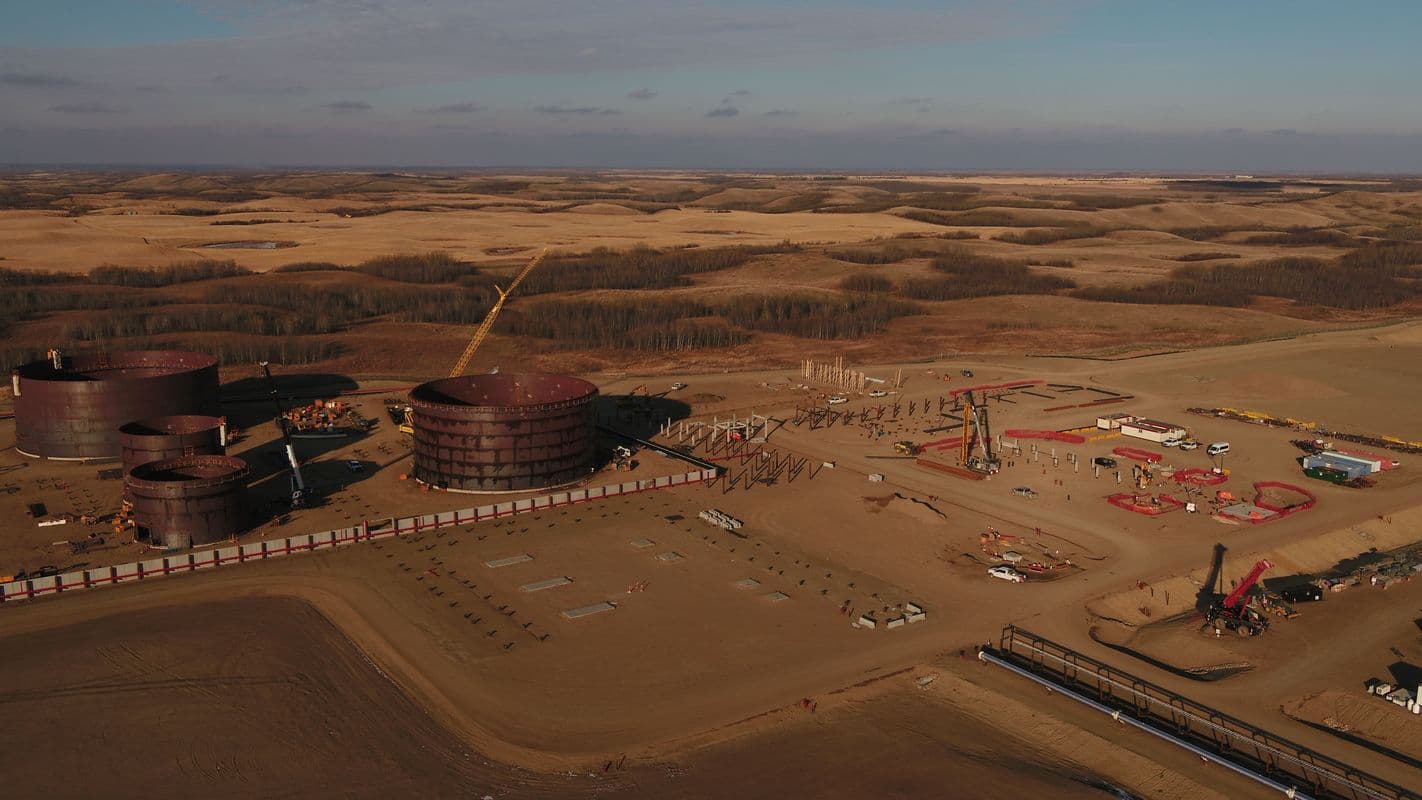

  • Tank base preparation

  • Supplied and installed liners and geo-textiles for containment

  • Installed a leak detection system for the foundations

  • Supplied and placed gravel for tank pads

  • Constructed reinforced concrete walls for tank foundations, firewater vaults, and pump pads

  • Performed fine grading of a sand base layer for tank wall construction

  • Installed HDPE liners covering an area of 50,000 m2

  • Installed a Teflon liner over an area of 950 square meters

  • Supplied and installed geotextiles and geogrid materials over an area of 100,000 m2

  • Placed gravel cover over the HDPE tank containment liner

  • Supplied and placed gravel for roadways, including using geogrid and base gravels

  • Installed a total of 90,000 tons of gravel for the project

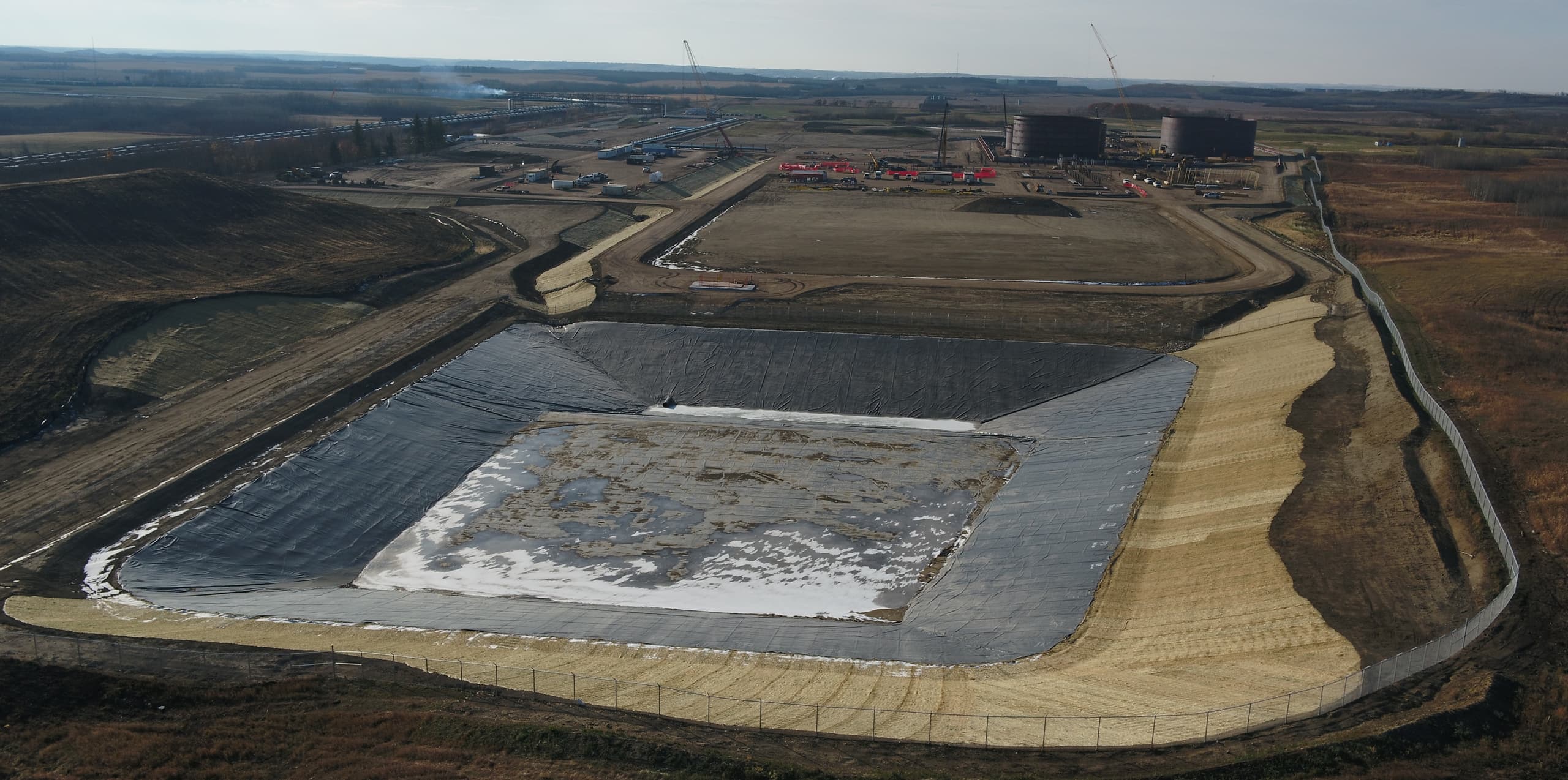

  • Constructed an HDPE-lined firewater pond

  • Installed a deep underground firewater system with pressure indicator valves (PIVs), hydrants, and performed hydro testing upon completion

  • Completed work, including layout surveys using GPS and machine grade control

  • Supplied and installed drainage culverts made of corrugated steel pipes (CSP), constructed ditches, and protected them with rip-rap armor

  • Conducted surveying activities and performed quality control material testing
